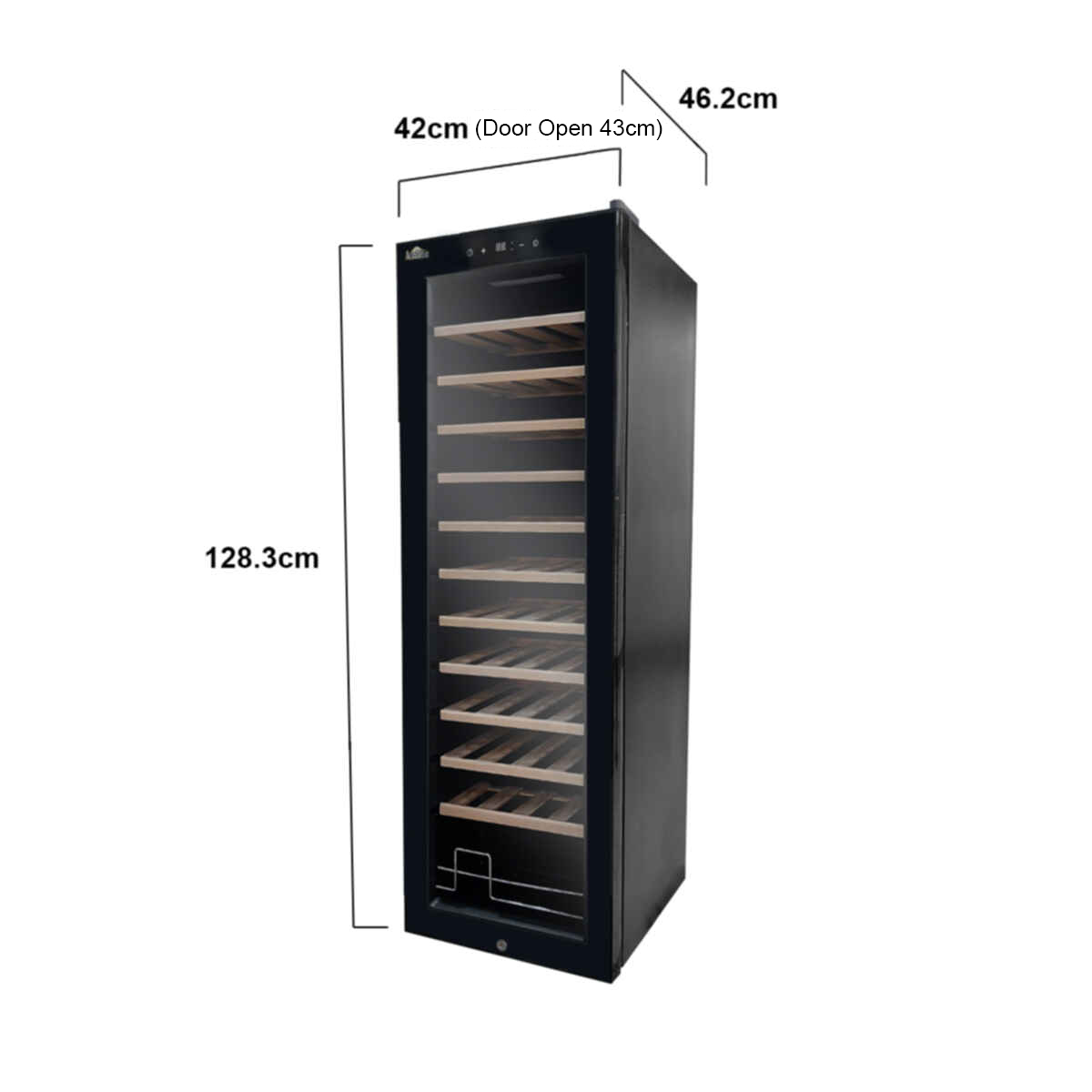

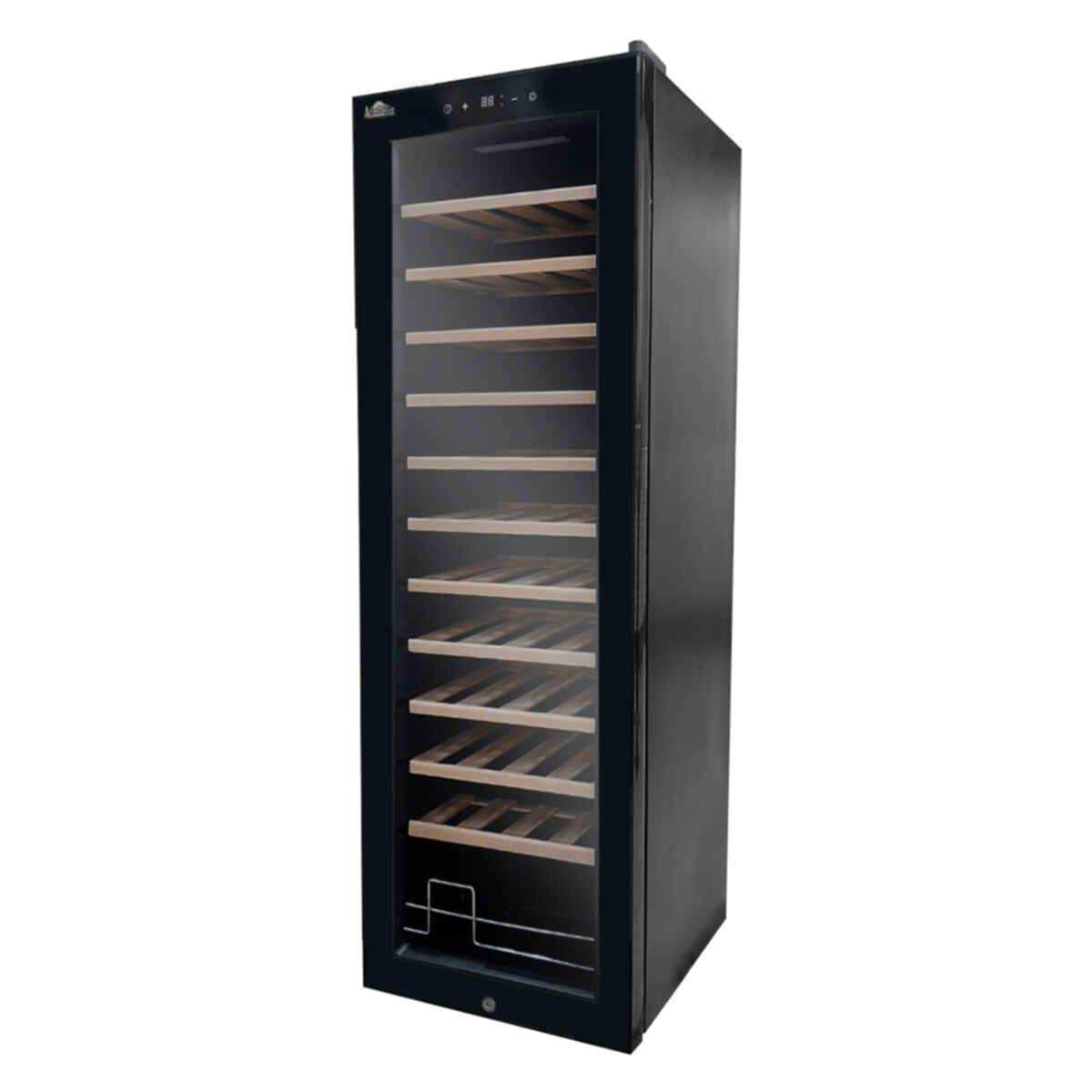

48 bottles 120L Wine Cabinet fan cooling compressor wooden frame cooling fridge

【Features】

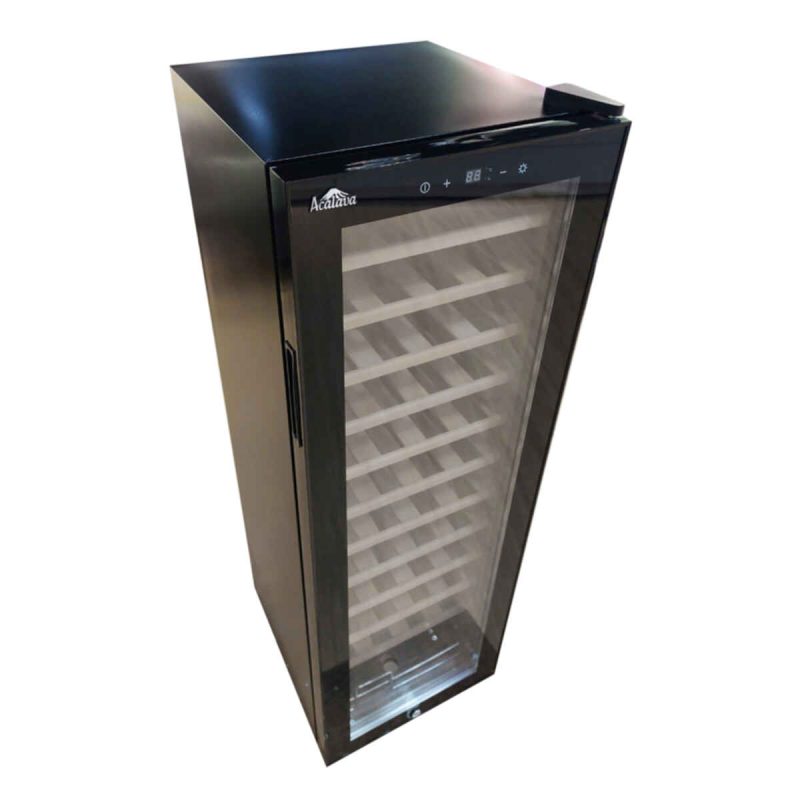

Stylish and simple, touch panel display

Dual core dual core, strong cooling and low noise

Constant temperature moisturizing, restore the wine cellar environment

Double air cooling, uniform temperature to preserve wine quality

Hidden handle, non-slip safety and more comfortable

Intelligent constant temperature, precise temperature control by microcomputer

Light-proof, heat-insulating, UV-proof glass door

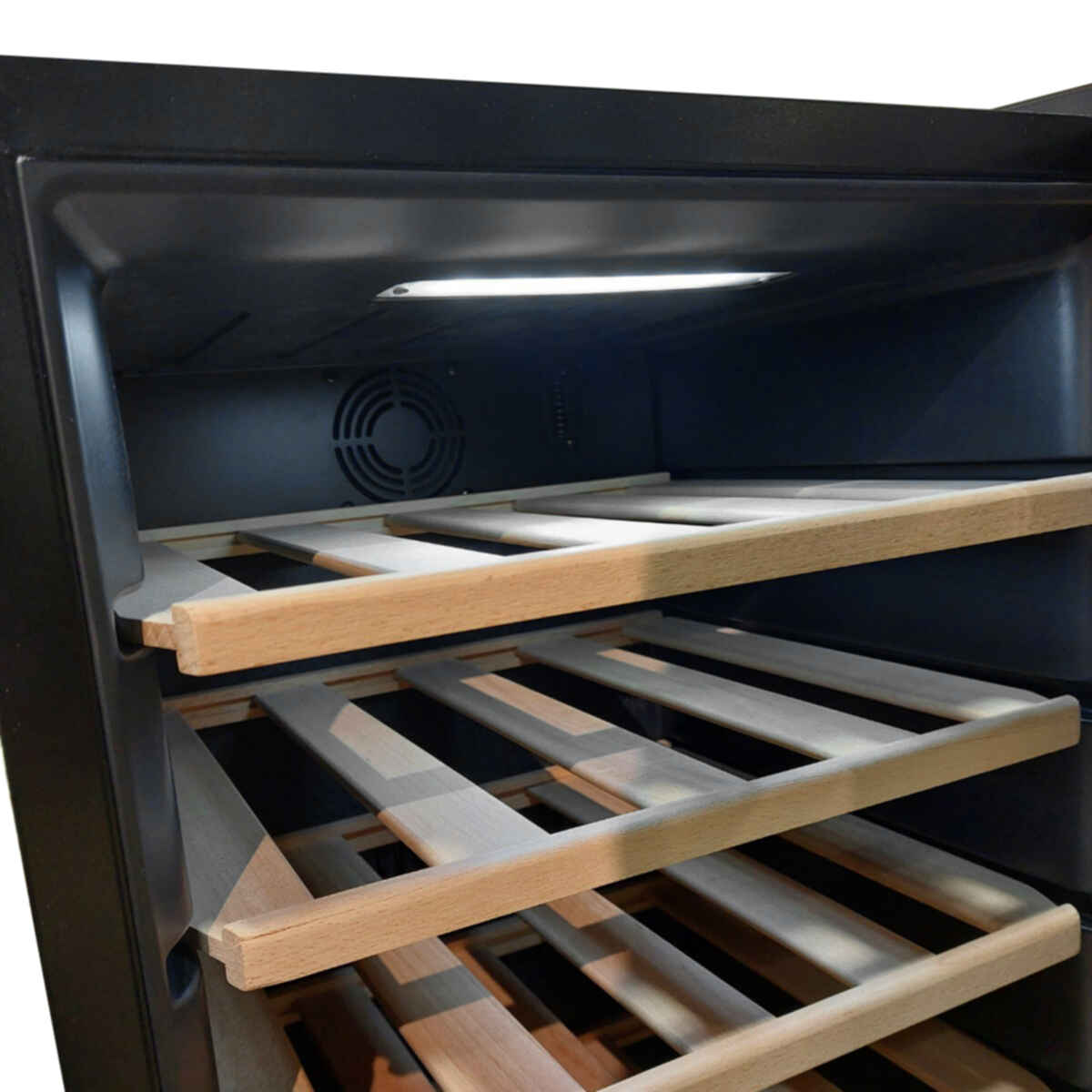

Intelligent lighting, the wine cabinet is wrapped in a glance

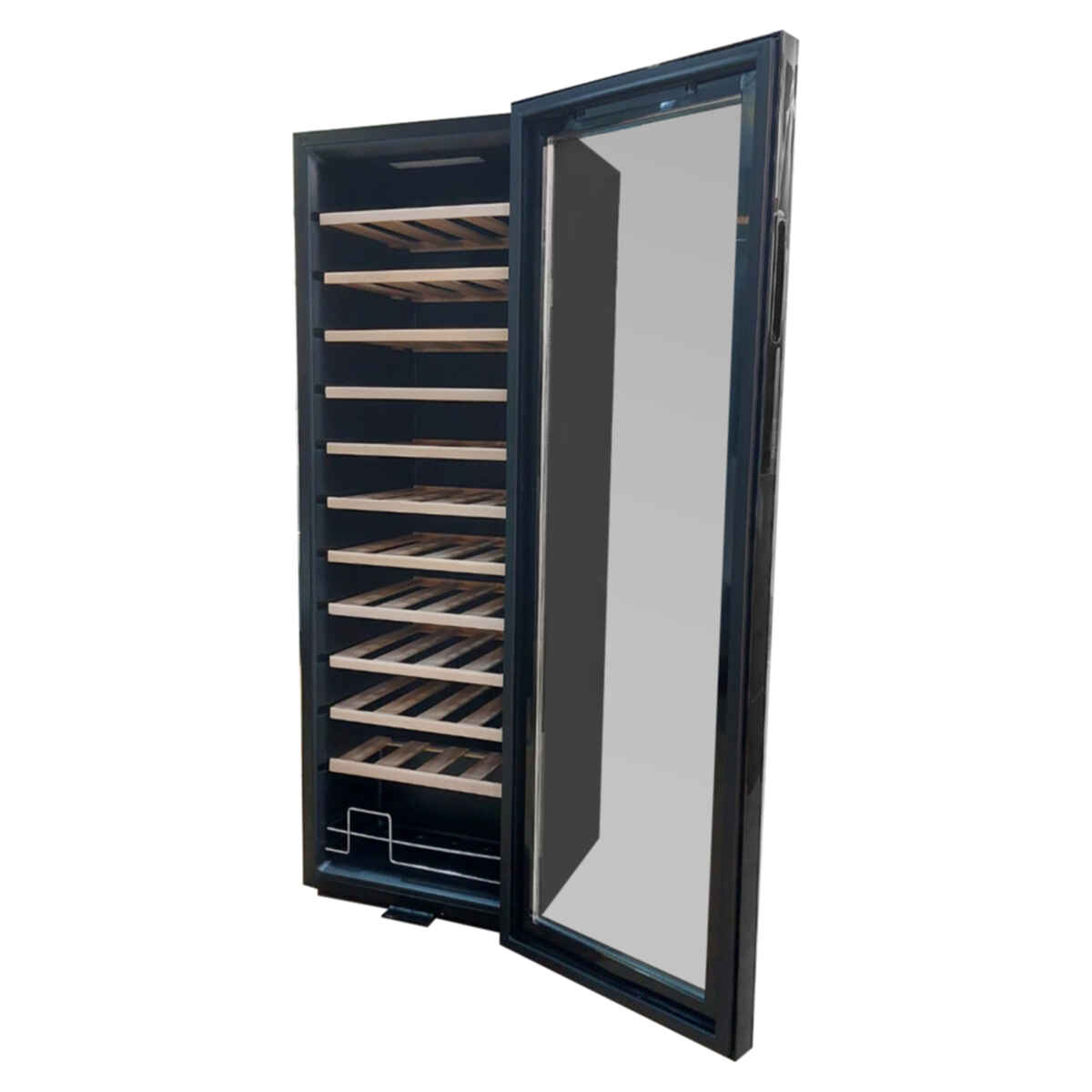

Large angle, more convenient storage and retrieval

Remove peculiar smell and set up a cooling cycle system

Suitable for: home, office, hotel, coffee shop, etc.

【Description】

The most important elements of red wine are temperature, humidity, luster and MOVEMENT PLAY, which all play an important role in when the wine will mature. If wine is to be stored for a period of time, it must be kept in a "safe" place. What is a "safe" place? A stylishly designed wine rack? A constant temperature wine cabinet can safely store valuable wine. When choosing a wine cabinet, you must first know the correct way to store wine. There are many types and designs of wine cabinets to choose from. Among them, the horizontal wine rack is the most appropriate, and the vertical wine storage is not a good choice for wine storage, because on the vertical rack, the cork will dry out, and finally cause shrinkage, and the air will come into contact with the wine, and the cells of the wine will be destroyed. destroy. Slanted racks can dry out the cork or deposit sediment near the cork.

The most ideal is a wine cabinet with horizontal shelves, which can keep the cork constantly moist and inflated, preventing your precious wine from contact with the air. Sediment falls to the side of the bottle, away from the cork, and prevents spoilage when pouring. The most important thing is cost-effective, simple design and can hold more wine.

What is a thermostatic wine cabinet?

A thermostatic wine cabinet can be a stylish addition that performs many of the same functions as a wine cellar, keeping your bottles at a steady temperature while maintaining the proper humidity for long-term preservation of your precious wines. Thermostatic wine cabinets are thermally insulated, including racks, doors, lighting, and cooling systems. Additional features include keyed lock, leveling feet, and digital temperature control. The advantage of a thermostatic wine cabinet is that it can store a large amount of wine in a small footprint. The constant temperature wine cabinet can limit the temperature and humidity range, and can adjust the temperature by itself to meet the temperature and humidity requirements of red wine.

It can also prevent important wine labels from falling off and becoming moldy.

We offer a variety of refrigerated wine coolers, each with its own advantages and disadvantages:

Semiconductor refrigeration technology:

What is a constant temperature wine cabinet?

It can also prevent important wine labels from falling off and moldy.

The temperature control and dehumidification host adopts a high-efficiency microcomputer refrigerated constant temperature and humidity structure, and the temperature can be controlled at about ±1°C. We use the latest technology in the design of American semiconductor frozen wafers. The humidity in the box %RH automatically controls the action of the frozen wafers. The moisture condenses to form frost, and water droplets form on the cooling plate, which are discharged out of the box through the water guide holes and are connected to the water by absorbent fibers. The large heat sink is drained by the natural evaporation of the heat from the heat sink to achieve the best dehumidification effect. Therefore, no drain pipe or water tank is required. It is the best design of cold and heat exchange technology. The temperature control adopts high-power cooling and heating chips made in the United States. When the temperature exceeds the set value, it automatically provides DC voltage to cool the cooling chip, which is ultra-quiet and achieves constant temperature control. The cooling is about ±10°C of the ambient temperature.

advantage:

With no moving parts, fluids or refrigerants, the production process is simple and inexpensive to manufacture.

Small size, no vibration, low noise, lightweight, etc.

Average temperature, no refrigerant, no pollution, no damage to the ozone layer, and low power consumption, energy saving and environmental protection. shortcoming:

Limited cooling capacity

The working environment temperature is limited

Compressor technology:

Compressor wine cabinets (using vapor compression to achieve the desired temperature), in order to achieve the cooling effect, the compressor pumps the refrigerant gas into the refrigeration system, which consists of many components, including the evaporator and the condenser. In a well set up condition, the compressor should be mounted on the main body of the wine cabinet and secured by vibration-absorbing rubber shock pads, this is to avoid any vibration being transmitted to the wine. Some wine coolers will use internal fans to keep the temperature even inside, while others use external fans to blow heat away from the compressor. Compressors can use many different types of refrigerant gasses, some of which use less energy, we use R600a, which also has zero ozone depletion properties.

Advantage:

Has a lower temperature and better thermostatic effect.

Mature technology, modular parts, easy maintenance.

Shortcoming:

There are many manufacturing and installation processes, and the cost is relatively expensive.

If it is not carried upright, it needs to be placed upright for 8 hours before turning on the machine.

Finally, our store recommends that you buy semiconductor refrigeration technology for wine cabinets with less than 32 bottles, and buy compressor refrigeration technology for large wine cabinets, which are relatively low temperature and have better cooling effects.
